Specifications in detail

Image Sensor

• Type
  36 x 24 mm CMOS
• Effective Pixels
  Approx. 30.3 megapixels
• Total Pixels
  Approx. 31.7 megapixels
• Aspect Ratio
  3:2
• Low-Pass Filter
  Built-in/Fixed
• Sensor Cleaning
  EOS integrated cleaning system
• Colour Filter Type
  Primary Colour

Image Processor

• Type
  DIGIC 8

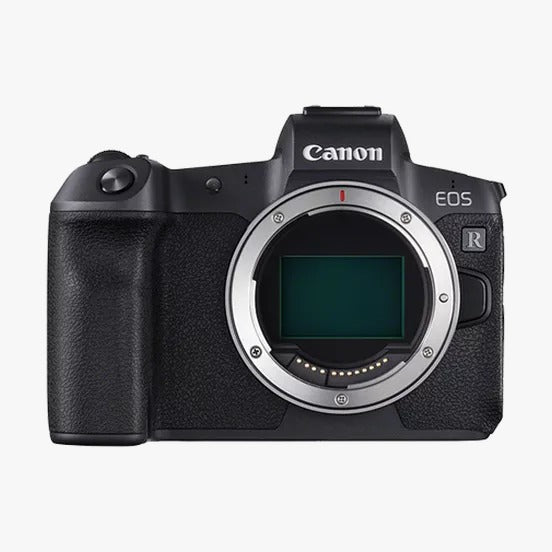

• Lens Mount
  RF (EF and EF-S lenses can be attached using Mount Adapter EF-EOS R, Control Ring Mount Adapter EF-EOS R, Drop-In Filter Mount Adapter EF-EOS R. EF-M lenses not compatible)
• Focal length
  Equivalent to 1.0x the focal length of the lens with RF and EF lenses 1.6x with EF-S

• Type
  Phase-difference detection system with image sensor (Dual Pixel CMOS AF)
• AF System / Points
  With Area 88% horizontal and 100% vertical
• AF working range
  EV -6 – 18 (at 23°C & ISO100)
• AF Modes
  One Shot
  Servo AF
• AF Point Selection
  Automatic selection: Face + tracking
  Manual selection: 1-point AF (AF frame size can be changed)
  Manual selection: AF point Expansion 4 points (up, down, left, right)
  Manual selection: AF point Expansion surrounding
  Manual selection: Zone AF (all AF points divided into 9 focusing zones)
  Manual selection: Large Zone AF (Vertical)
  Manual selection: Large Zone AF (Horizontal)
• AF Lock
  Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
• AF Assist Beam
  Emitted by built in LED or optional dedicated Speedlite (flash)
• Manual Focus
  Selected on lens

• Metering modes
  Real-time with image sensor, 384-zone metering.
  (1) Evaluative metering (linked to All AF points)
  (2) Partial metering (approx. 6.1% of viewfinder at centre)
  (3) Spot metering: Centre spot metering (approx. 2.7% viewfinder at centre)
  AF point-linked spot metering not provided
  (4) Centre weighted average metering
• Metering Brightness Range
  EV -3 – 20 (at 23°C, ISO100, with evaluative metering)
• AE Lock
  Auto: AE lock takes effect when focus is achieved
  Manual: By AE lock button in P, Av, Fv, Tv and M modes
• Exposure Compensation
  +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
• AEB
  +/-3 EV in 1/3 or 1/2 stop increments
• Anti-flicker shooting
  Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease
• ISO Sensitivity
  Auto 100-40000 (in 1/3-stop or whole stop increments)
  ISO can be expanded to L:50, H1: 51200, H2: 102400

Shutter

• Type
  Electronically-controlled focal-plane shutter and silent CMOS sensor readout
• Speed
  30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
• Shutter Release
  Soft touch electromagnetic release

• Type
  Auto white balance with the imaging sensor
• Settings
  AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting
  White balance compensation:
  1. Blue/Amber +/-9
  2. Magenta/Green +/-9
• Custom White Balance
  Yes, 1 setting can be registered
• WB Bracketing
  +/-3 levels in single level increments
  3, 2, 5 or 7 bracketed images per shutter release
  Selectable Blue/Amber bias or Magenta/Green bias

• Type
  0.5-inch OLED colour EVF
• Dot count
  3.69 Million dots (1280x960)
• Coverage (Vertical/Horizontal)
  Approx. 100%
• Magnification
  Approx. 0.76x 1
• Eyepoint
  Approx. 23mm (from eyepiece lens centre)
• Dioptre Correction
  -4 to +2 m^-1 (dioptre)
• Viewfinder Information
  AF point information, Exposure level indicator, Number of remaining multiple exposures, Exposure compensation, HDR shooting, Highlight tone priority, Multiple-exposure shooting, ISO speed, Dual Pixel RAW shooting, Possible shots, Multi Shot Noise Reduction, Number of self-timer shooting, Digital Lens Optimizer, Maximum burst, AF method, Battery level, AF operation, Exposure simulation, Drive mode, AEB, Metering mode, FEB, Anti-flicker shooting, Still photo cropping, Shooting mode, Aspect ratio, Scene icons, Auto Lighting Optimizer, AE lock Picture Style, Flash-ready, White balance, Flash off, White balance correction, FE lock, Image Quality, High-speed sync, Bluetooth function, Shutter speed, Wi-Fi function, Multi-function lock warning, Histogram, Aperture, Electronic level, Lens information
• Eyepiece shutter
  N/A

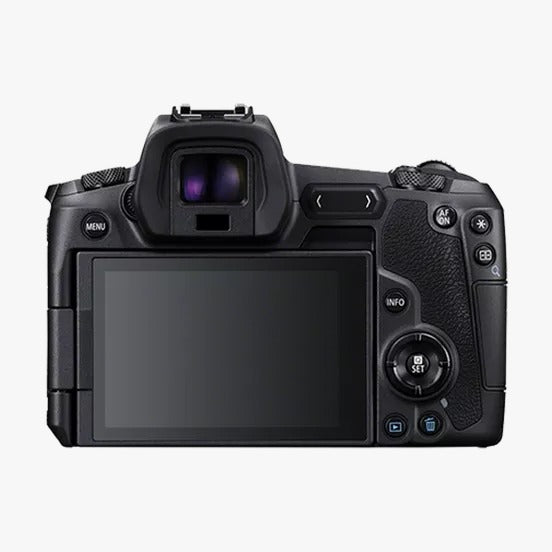

• Type
  8.01cm (3.15") Clear View LCD II, approx. 2.1million dots
• Coverage
  Approx. 100%
• Viewing Angle (horizontally/vertically)
  Approx. 170° vertically and horizontally
• Coating
  Anti-smudge. Reinforced glass incorporated
• Brightness Adjustment
  Manual: Adjustable to one of seven levels
  Colour Tone Adjustment: 4 settings
• Touch-screen operations
  Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.
• Display Options
  (1) Basic Camera settings
  (2) Advance Camera settings
  (3) Camera settings plus histogram and dual level display
  (4) No info
  (5) Quick Control Screen

Flash

• Modes
  E-TTL II Auto Flash, Metered Manual
• X-sync
  1/200sec
• Flash Exposure Compensation
  +/- 3EV in 1/3 increments with EX series Speedlite flashes
• Flash Exposure Bracketing
  Yes, with compatible External Flash
• Flash Exposure Lock
  Yes
• Second Curtain Synchronisation
  Yes via Speedlite
• HotShoe / PC terminal
  Yes/Yes via Battery Grip BG-E22
• External Flash Compatibility
  E-TTL II with EX series Speedlite, wireless multi-flash support
• External Flash Control
  via camera menu screen

Shooting

• Modes
  Stills; Scene Intelligent Auto, Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3)
  Movie: Scene Intelligent Auto, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3)
• Picture Styles
  Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
• Colour Space
  sRGB and Adobe RGB
• Image Processing
  Highlight Tone Priority
  Auto Lighting Optimizer (4 settings)
  Long exposure noise reduction
  High ISO speed noise reduction (4 settings) (still and video)
  Lens optical correction:
  - Peripheral illumination correction, Chromatic aberration correction, Distortion correction (during/after still photo shooting, during video only)
  - Diffraction correction, Digital Lens Optimizer (during/after still photo shooting)
  Resize to M, S1, S22
  Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)
  - 45 cropping sizes selectable, from 11% to 95% (diagonal)
  - Switch between vertical and horizontal cropping orientation
  - Image straightening
  - Cropping frame can be moved using touch screen operation
  RAW image processing3
  Multiple exposure
  HDR
• Drive modes
  Single, Continuous High, Continuous Low, Silent Single, Self timer (2s+remote, 10s+remote)
• Continuous Shooting
  Max. Approx. 8fps. speed maintained for 100 JPEG, 47 RAW, 78 C-RAW images456
  Max. 5fps with AF Tracking
• Interval timer
  4k time lapse movie

Live View Mode

• Type
  Electronic viewfinder with image sensor
• Coverage
  Approx. 100% (horizontally and vertically)
• Frame Rate
  59.97 fps (smooth) / 29.97 fps (power saving)
• Focusing
  Manual Focus (Magnify the image 5x or 10x at any point on screen)
  Autofocus: Dual Pixel CMOS AF (Face Detection and Tracking AF, 1point AF, Expand AF Area Zone AF, and Touch shutter
• Metering
  Real-time evaluative metering with image sensor (384-zone)
  Partial metering (approx. 6.1% of the centre of the screen)
  Spot metering (approx. 2.7% of the centre of the screen)
  Centre-weighted average metering
  Active metering timer can be changed
• Display Options
  3 levels available Basic shooting information, Advanced shooting information and Advanced shooting information with Histogram

File Type - Stills

• Still Image Type
  JPEG: 2 compression options
  RAW: RAW, C-RAW and Dual Pixel RAW (14-bit, Canon original RAW 3rd edition)
  Complies with Exif 2.31 and Design rule for Camera File system 2.0
  Complies with Digital Print Order Format [DPOF] Version 1.1
• RAW+JPEG simultaneous recording
  Yes, any combination of RAW + JPEG possible, including Dual Pixel RAW +JPEG
• Image Size
  JPEG:
  3:2 ratio (L, RAW, C-RAW) 6720x4480, (M1) 4464x2976, (S1) 3360x2240, (S2) 1696x1280
  1.6x (crop) (L) 4176x2784, (S2) 2400x1600
  4:3 ratio (L) 5952x4480, (M1) 3968x2976, (S1) 2976x2240, (S2) 2112x1600
  16:9 ratio (L) 6720x3776, (M1) 4464x2512, (S1) 3360x1888, (S2) 2400x1344
  1:1 ratio (L) 4480x4480, (M1) 2976x2976, (S1) 2240x2240, (S2) 1600x1600
• Folders
  New folders can be manually created and selected
• File Numbering
  (1) Consecutive numbering
  (2) Auto reset
  (3) Manual reset

• Movie Type
  MP4 Video: 4K (16:9) 3840 x 2160, Full HD, HD
  MPEG4 AVC/H.264 variable (average) bit rate, Audio: Linear PCM / AAC
• Movie Size
  4K (16:9) 3840 x 2160 (29.97, 25, 24, 23.98 fps) intra or inter frame7
  Full HD (16:9) 1920 x 1080 (59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame
  Full HD (16:9) 1920 x 1080 HDR (29.97, 25 fps) inter frame
  Full HD (16:9) 1920 x 1080 (29.97, 25) light inter frame
  HD (16:9) 1280 x 720 (119.9, 100 fps) intra frame
• Colour Sampling (Internal recording)
  4K - YCbCr4:2:0 (8-bit)
  Full HD/HD - YCbCr4:2:0 (8-bit)
• Canon Log
  Yes Log 1
• Movie Length
  4K and Full HD - Max duration 29min 59sec. (excluding High Frame Rate movies). No 4GB file limit with exFAT SDXC
• High Frame Rate Movie
  MOV Video: HD - 1280 x 720 at 100fps or 119.9fps
  Recorded as 1/4-speed slow motion movie
  Single scene maximum recording up to 7min 29sec.
• 4K Frame Grab
  8.3-megapixel JPEG still image frame grab from 4K movie possible
• Bitrate / Mbps
  4K (29.97p/25.00p/24.00p/23.98p): ALL-I Approx. 480 Mbps
  4K (29.97p/25.00p/24.00p/23.98p): IPB Approx. 120 Mbps
  Full HD (59.94p/50.00p): ALL-I Approx. 180 Mbps
  Full HD (59.94p/50.00p): IPB Approx. 60 Mbps
  Full HD (29.97p/25.00p/24.00p/23.98p): ALL-I Approx. 90 Mbps
  Full HD (29.97p/25.00p/24.00p/23.98p): IPB Approx. 30 Mbps
  Full HD (29.97p/25.00p): IPB (Light) Approx. 12 Mbps
  HD (119.9p/100.0p): ALL-I Approx. 160 Mbps
  HD (59.94p/50.00p): ALL-I Approx 80 Mbps
  HD (59.94p/50.00p): IPB Approx 26 Mbps
  HD (29.97p/25.00p): IPB Approx 13 Mbps
• Microphone
  Built-in stereo microphones (48 Khz, 16-bit x 2 channels)
• HDMI Display
  External Monitor only, External Monitor only without information display or Simultaneous on camera and external monitor
• HDMI Output
  4K (UHD) uncompressed YCbCr 4:2:2, 8-bit or 10-bit, Full HD 1080P YCbCr 4:2:2, 8-bit. Supported outputs 4K UHD/29.97P, 4K UHD/25.00P, 4K UHD/24.00P, 4K UHD/23.98P, 1080/59.94P 1080/50.00P, 1080i/50.00i, 1080i/59.94i, 1080/24.00P, 576p/50.00P, 480/59.94p. Sound output via HDMI is also possible
• Focusing
  Dual Pixel CMOS AF with Face Detection and Tracking AF, Movie Servo AF Manual Focus
• ISO
  4K - Auto: 100-12800, H: 25600, H: 32000, H1: 51200, H2: 102400,
  Full HD/HD - Auto: 100-25600, H: 32000, H1: 51200, H2:102400

• Custom Functions
  22 Custom Functions
• Metadata Tag
  User copyright information (can be set in camera)
  Image rating (0-5 stars)
  IPTC data (registered with EOS Utility)
  Image transfer with caption (Caption registered with EOS Utility)
• LCD Panel / Illumination
  Yes/Yes
• Water / Dust resistance
  Yes
• Voice Memo
  No
• Intelligent Orientation Sensor
  Yes
• Playback zoom
  1.5x - 10x in 15 steps
• Display Formats
  (1) Single image
  (2) Single image with information (2 levels)
  Basic - Shooting information (shutter speed, aperture, ISO and Image quality)
  Detailed - Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information, Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, GPS information, IPTC information
  (3) 4 image index
  (4) 9 image index
  (5) 36 image index
  (6) 100 image index
  (7) Jump Display (1, 10 or 100 images, Date, Folder, Movies, Stills, Protected images, Rating)
  (8) Movie edit
  (9) RAW processing
  (10) Rating
• Slide Show
  Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating
  Playback time: 1/2/3/5/10 or 20 seconds
  Repeat: On/Off
• Histogram
  Brightness: Yes
  RGB: Yes
• Highlight Alert
  Yes
• Image Erase
  Single image, select range, Selected images, Folder, Card
• Image Erase Protection
  Erase protection of Single image, Folder or Card all found images (only during image search)
• Self Timer
  2 or 10 sec.
• Menu Categories
  (1) Shooting menu
  (2) AF Menu
  (3) Playback menu
  (4) Setup menu
  (5) Custom Functions menu
  (6) My Menu
• Menu Languages
  29 Languages
  English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
• Firmware Update
  Update possible by the user (Camera, Lens, WFT, External Speedlite, BLE remote control, Lens adapter)

Interface

• Computer
  SuperSpeed USB 3.1 USB C connector
• Wi-Fi
  Wireless LAN (IEEE802.11b/g/n) (2.4 GHz only), with Bluetooth support8 Features supported - EOS Utility, Smartphone, Upload to Web, Wireless printing
• Other

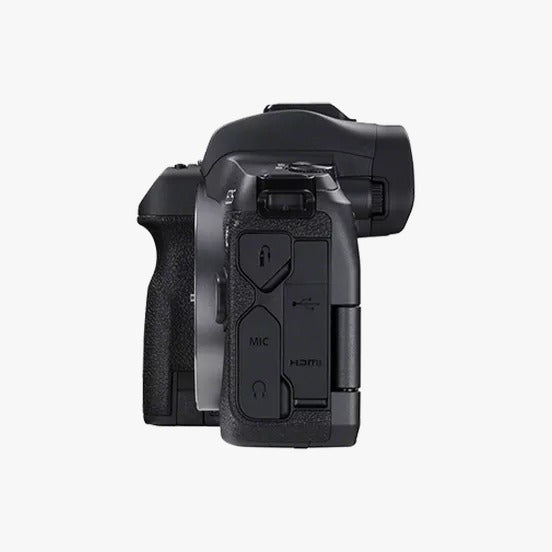

  HDMI mini out (Type C, HDMI-CEC compatible), External Microphone In/Line In (Stereo mini jack), Headphone socket (Stereo mini jack), E3-type terminal (remote control terminal)

Direct Print

• PictBridge
  Yes (Via Wireless LAN only)

• Type
  1x SD/SDHC/SDXC and UHS-II

• PC & Macintosh
  Windows 7 (excl. Starter Edition) Windows 8.1 and Windows 10 (tablet mode not supported)
  OS X v10.11-10.14

Software

• Image Processing
  Digital Photo Professional 4.9 or later (RAW Image Processing)
• Other
  EOS Utility 3.9 or later (incl. Remote Capture), Picture Style Editor, Map Utility, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera connect app (iOS/Android)

Power Source

• Batteries
  Rechargeable Li-ion Battery LP-E6N (supplied)/LP-E6
• Battery life
  Approx. 370 shots (at 23°C)9
  Approx. 350 (at 0°C)
• Battery Indicator
  6 levels + percentage
• Power saving
  Power turns off after 30 seconds, 1, 3, 5, 10 or 30mins
• Power Supply & Battery Chargers
  Battery charger LC-E6E (supplied), AC Adapter AC-E6N and DC Coupler DR-E6, AC Adapter Kit ACK-E6N/ACK-E6, Car Battery Charger CBC-E6, USB Power Adapter PD-E1

Accessories

• Wireless File Transmitter
  Wireless File Transmitter WFT-E7B

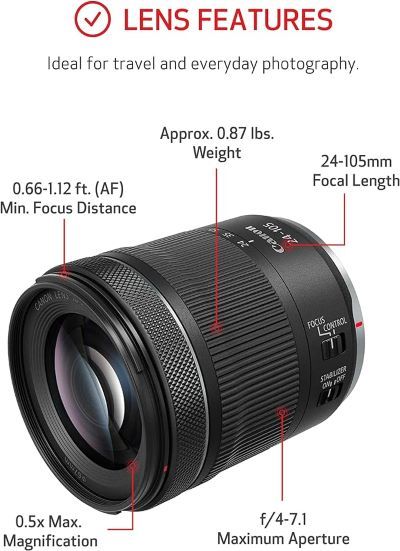

• Lenses
  All RF lenses (EF & EF-S via Lens adapters)
• Lens adapters
  Mount Adapter EF-EOS R, Control Ring Mount Adapter EF-EOS R, Drop-In Filter Mount Adapter EF-EOS R
• Flash
  Canon Speedlite (EL-100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III 470EX-AI, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, 600EX-II-RT, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Macro Twin Lite MT-26EX Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)
• Remote Controller / Switch
  Remote control with E3 type socket and Speedlite 600EX-II-RT
• Other
  Battery Grip BG-E22, GP-E2 GPS receiver

Dimensions, Weight & Body Materials

• Body Materials
  Magnesium Alloy body and polycarbonate with glass fibre parts
• Operating Environment
  0 – 40 °C, 85% or less humidity

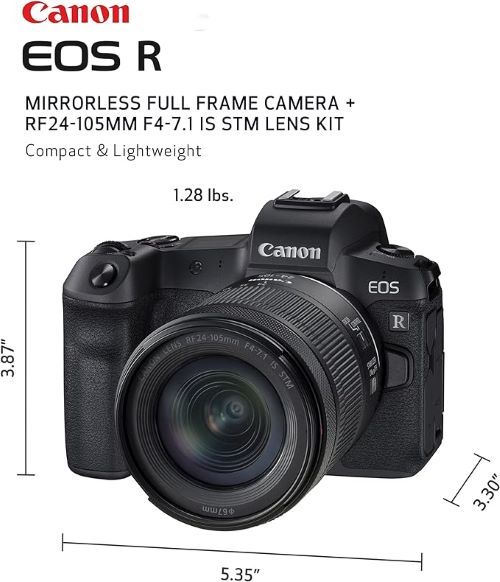

• Dimensions (W x H x D)
  135.8 x 98.3 x 84.4mm
• Weight (body only)
  Approx. 580 g (660 g with card and battery)
